Custom Fabrication - Duct and Cable Tray Supports

The Unipier products offer a great deal of flexibility. If you do not find an "off-the-shelf" support for your particular application, contact Unistrut with your requirements. We can design and build the proper support for your unique application.

For a quotation on custom fabrication, contact Unistrut with the parameters for your design as shown below.

1. Dimension of duct
2. Clearance height above roof
3. Total footage of duct
4. Thickness of insulation, if any



Base
Number

H

W

A

Max.
Uniform Load

Per Duct

UP-BK

17"
(431.8)

8" to 12"
(203.2 to 304.8)

6" to 12"
(152.4 to 304.8)

25 lbs.
UP-BK

24"
(609.6)

12" to 18"
(304.8 to 457.2)

6" to 18"
(152.4 to 457.2)

50 lbs.

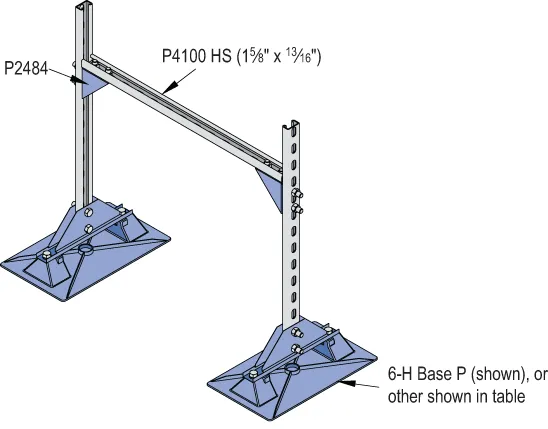

Picture 1



Part Number

Max. Uniform Load

Max. Pipe Capacity

Per Pipe Stand

Per Base

8-H-DB Base P 700 lbs. 350 lbs.

8" ID
9" OD

16-H Base P 1,600 800

16" ID
18" OD

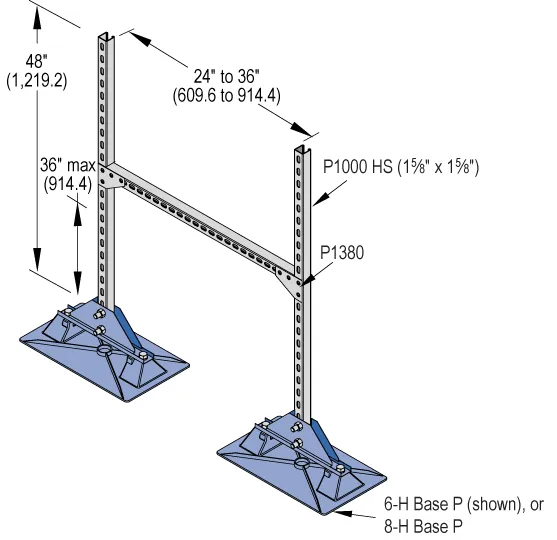

Picture 2



Base

Material

Max. Uniform Load

Per Duct

Per Base

6-H Base P Polycarbonate 150 lbs. 75 lbs.
6-H Base HDG

Hot-Dipped
Galvanized

300 lbs. 150 lbs.
6-H Base SS Stainless Steel 300 lbs. 150 lbs.
8-H-SB Base P Polycarbonate 300 lbs. 150 lbs.
8-H Base HDG

Hot-Dipped
Galvanized

300 lbs. 150 lbs.
8-H-DB Base SS StainlessSteel 300 lbs. 150 lbs.
8-H-DB Base P Polycarbonate 300 lbs. 150 lbs.
